12.2W - 25.2W,
LED Driver for 450 / 500 / 550 / 600 mA,
Output Current Adjustable via Dip Switch,
with low ripple,
| Model | Vin | lout | Vout | Pout | Power Factor | Current Ripple | Dimension | Certification |
|---|---|---|---|---|---|---|---|---|

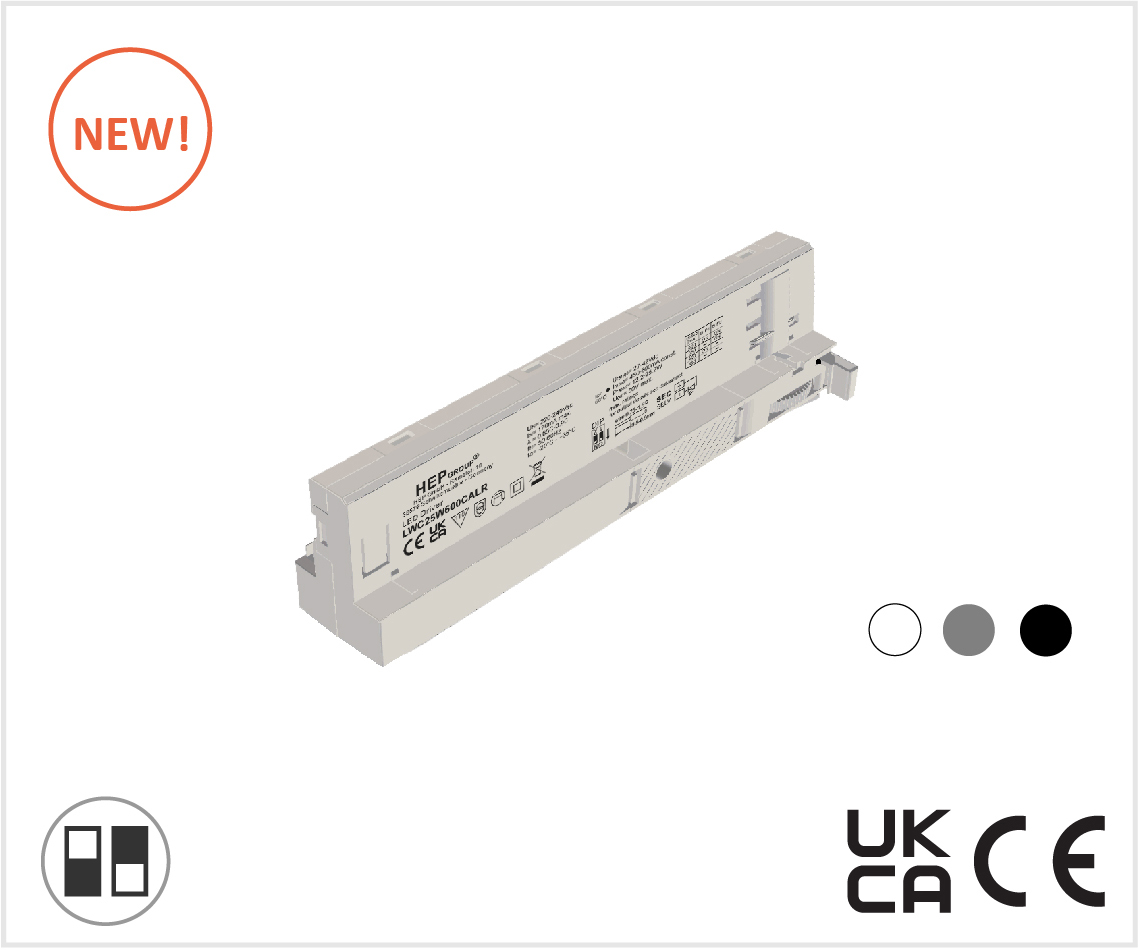

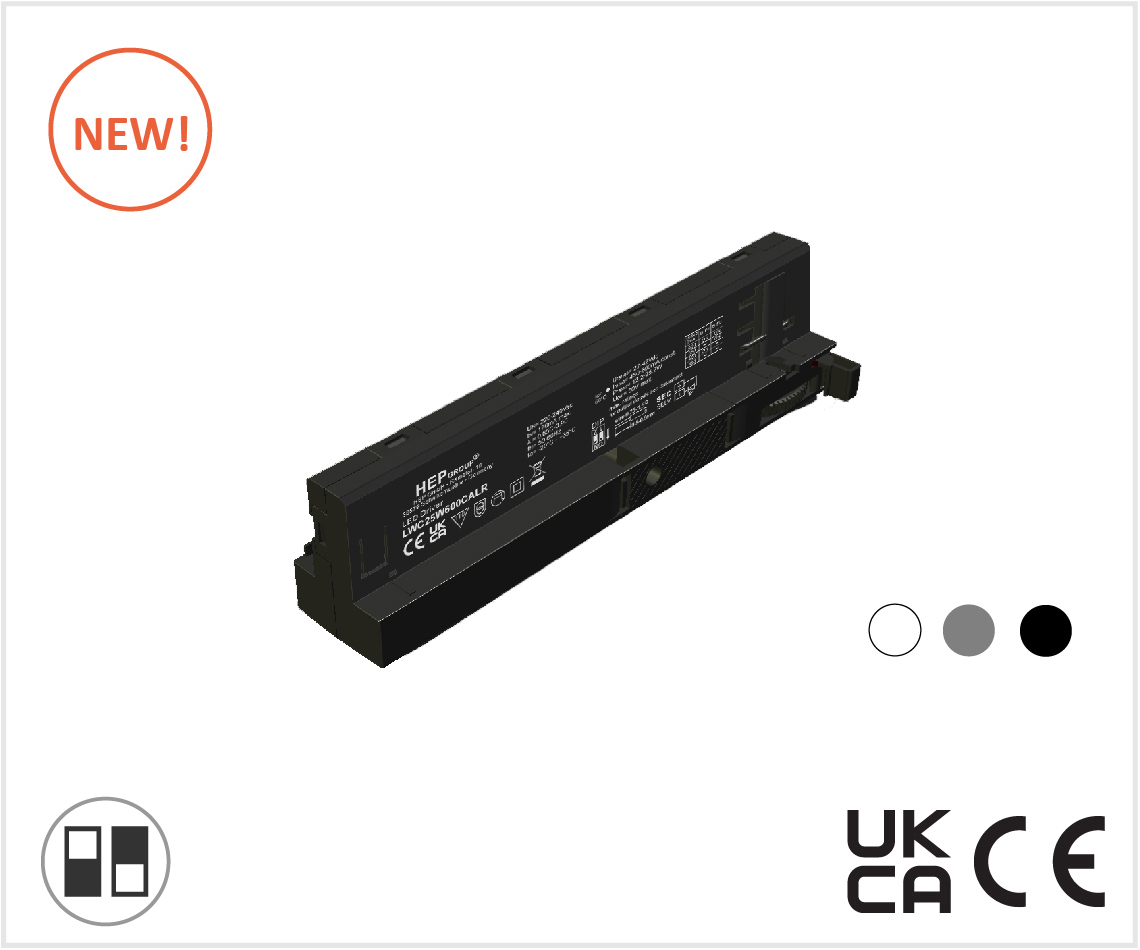

| LWC25W600CALR | 220–240 V | 450 mA | 27 - 42 V | 12.2 - 18.9 W | 0.85-0.96 | ±3 % | 162 x 30.9 x 43.1 mm | CE/UKCA |
| 500 mA | 27 - 42 V | 13.5 - 21.0 W | ||||||
| 550 mA | 27 - 42 V | 14.9 - 23.1 W | ||||||
| 600 mA | 27 - 42 V | 16.2 - 25.2 W |
| Datasheet | LWC25W600CALR | |
|---|---|---|
| EU Declaration of conformity | CE_LWC | |
| GB Declaration of conformity | UKCA_LWC |
