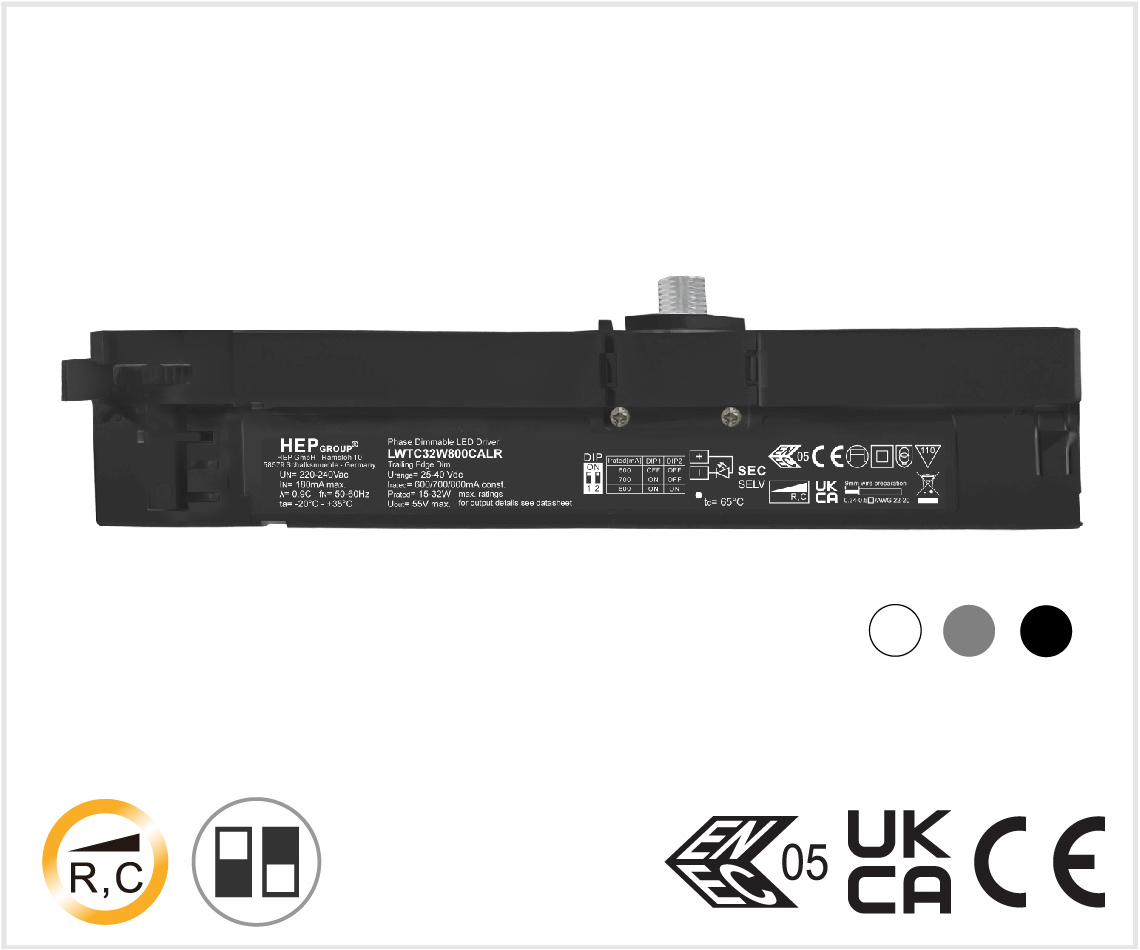

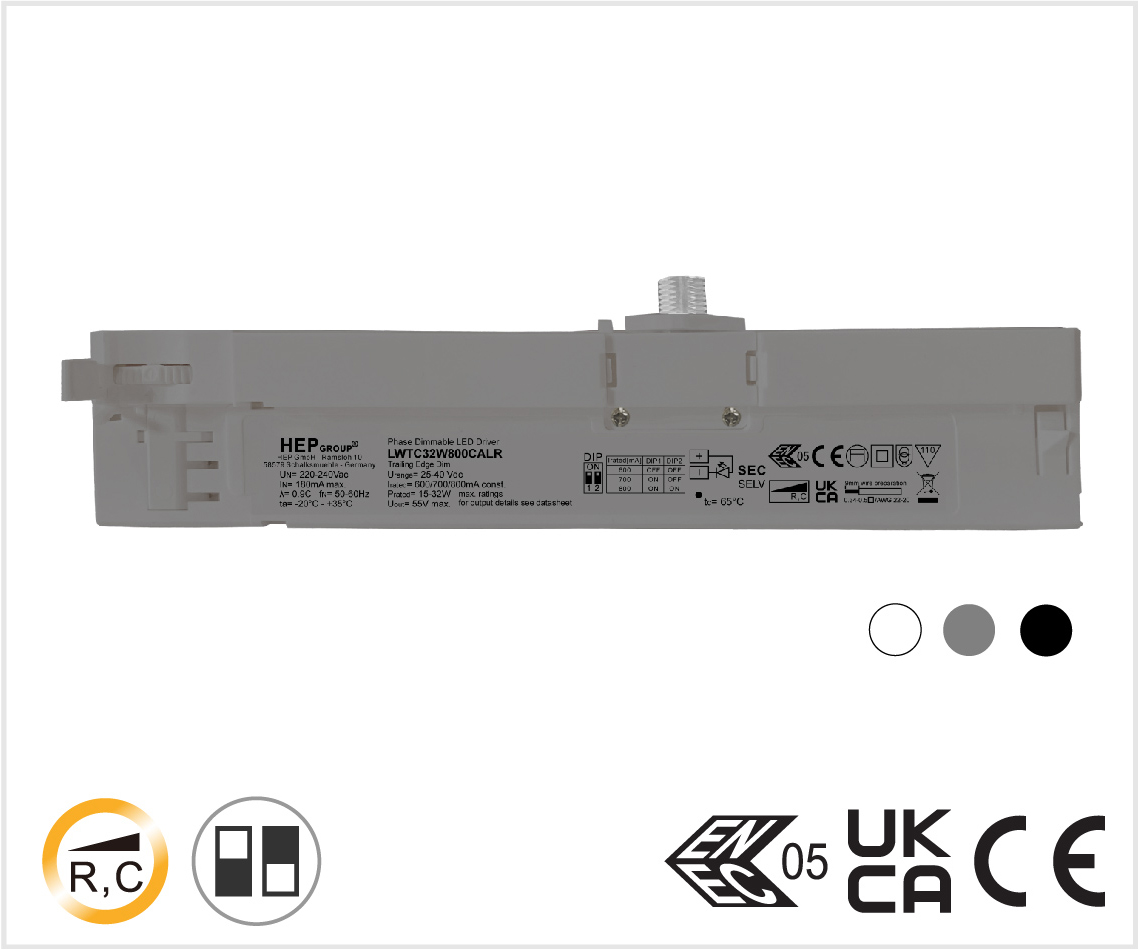

15W - 32W
Phase dim LED Driver for 600/700/800 mA,
with low ripple
| Model | Vin | lout | Vout | Pout | Power Factor | Current Ripple | Dimension | Certification |
|---|---|---|---|---|---|---|---|---|
| LWTC32W800CALR | 220–240 V | 600 mA | 25 - 40 V | 15 - 24 W | 0.85C - 0.95 | ±5 % | 230.5 x 45.9 x 31 mm | ENEC/CE/UKCA |
| 700 mA | 25 - 40 V | 17.5 - 28 W | ||||||
| 800 mA | 25 - 40 V | 20 - 32 W |
| Datasheet | LWTC32W800CALR | |
|---|---|---|
| CB Certificate | NL-110915 | |
| ENEC Certificate | 88-146960 | |
| EU Declaration of conformity | CE_LWTC Series | |
| GB Declaration of conformity | UKCA_LWTC20_32W |
