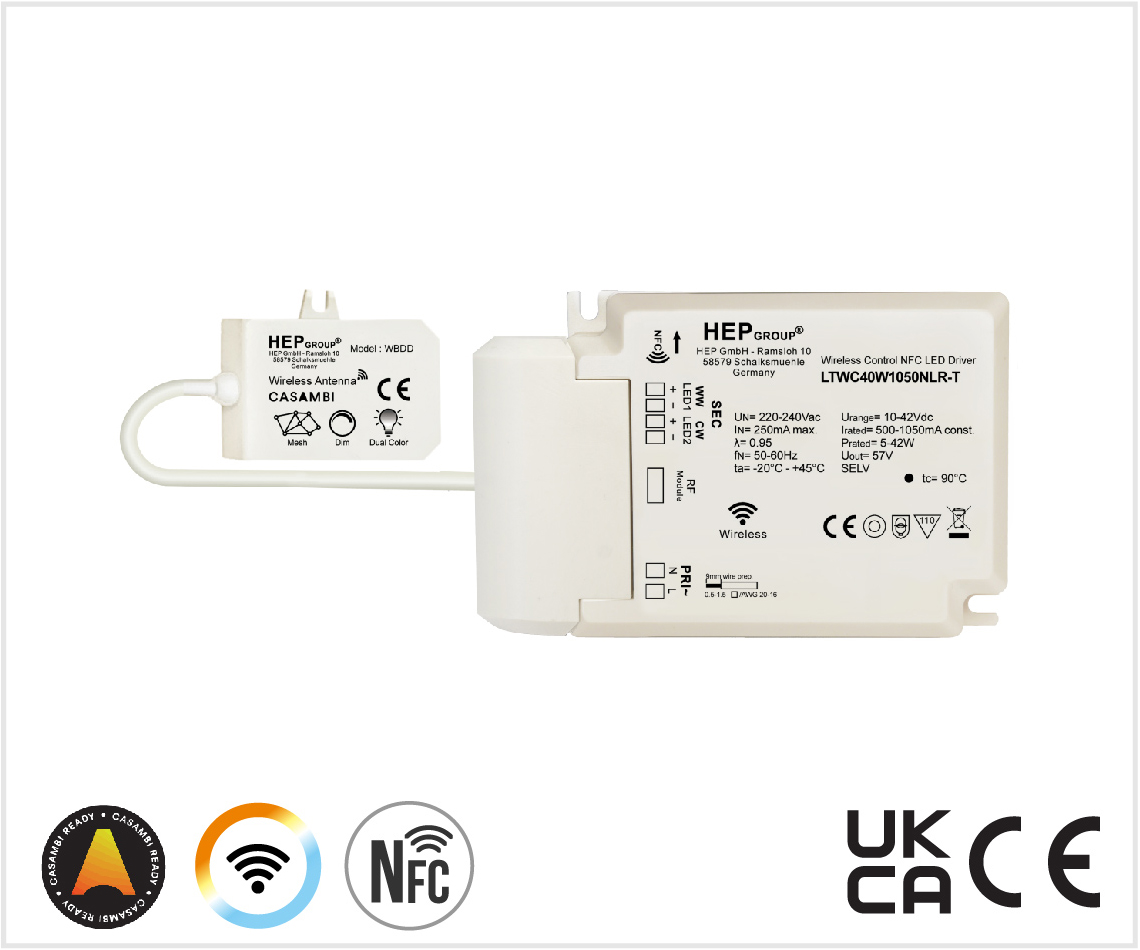

5 W - 42 W LED Driver for 500-1050 mA,
Integrated CASAMBI Module,Tunable White,
NFC,
Built-in type with double or reinforced insulation,
Optional with strain relief for independent installation,
with low ripple,
| Model | Vin | lout | Vout | Pout | Power Factor | Current Ripple | Dimension | Certification |
|---|---|---|---|---|---|---|---|---|
| LTWC40W1050NLR-T | 220–240 V | 500 mA | 10 - 42 V | 5.0 - 21.0 W | 0.95 | ±5 % | 103.5 x 79 x 30 mm 123 x 79 x 30 mm |
CE/UKCA |
| 600 mA | 10 - 42 V | 6.0 - 25.2 W | ||||||
| 700 mA | 10 - 42 V | 7.0 - 29.4 W | ||||||
| 800 mA | 10 - 42 V | 8.0 - 33.6 W | ||||||
| 900 mA | 10 - 42 V | 9.0 - 37.8 W | ||||||
| 1000 mA | 10 - 42 V | 10.0 - 42.0 W | ||||||
| 1050 mA | 10 - 40 V | 10.5 - 42.0 W |
| Model | Wireless protocol | Operating frequency | Transmission distance | Operating environment | |||||
|---|---|---|---|---|---|---|---|---|---|
| WBDD(CASAMBI Control) Tunable White | Bluetooth low energy mesh protocol | 2.4G | >50M | -40~+45 °C |
| Datasheet | LTWC40W1050NLR-T | |
|---|---|---|
| WBDD | ||
| EU Declaration of conformity | CE_LTWC40W | |
| CE_CASAMBI | ||
| EU Declaration of conformity | UKCA_LTWC40W |
