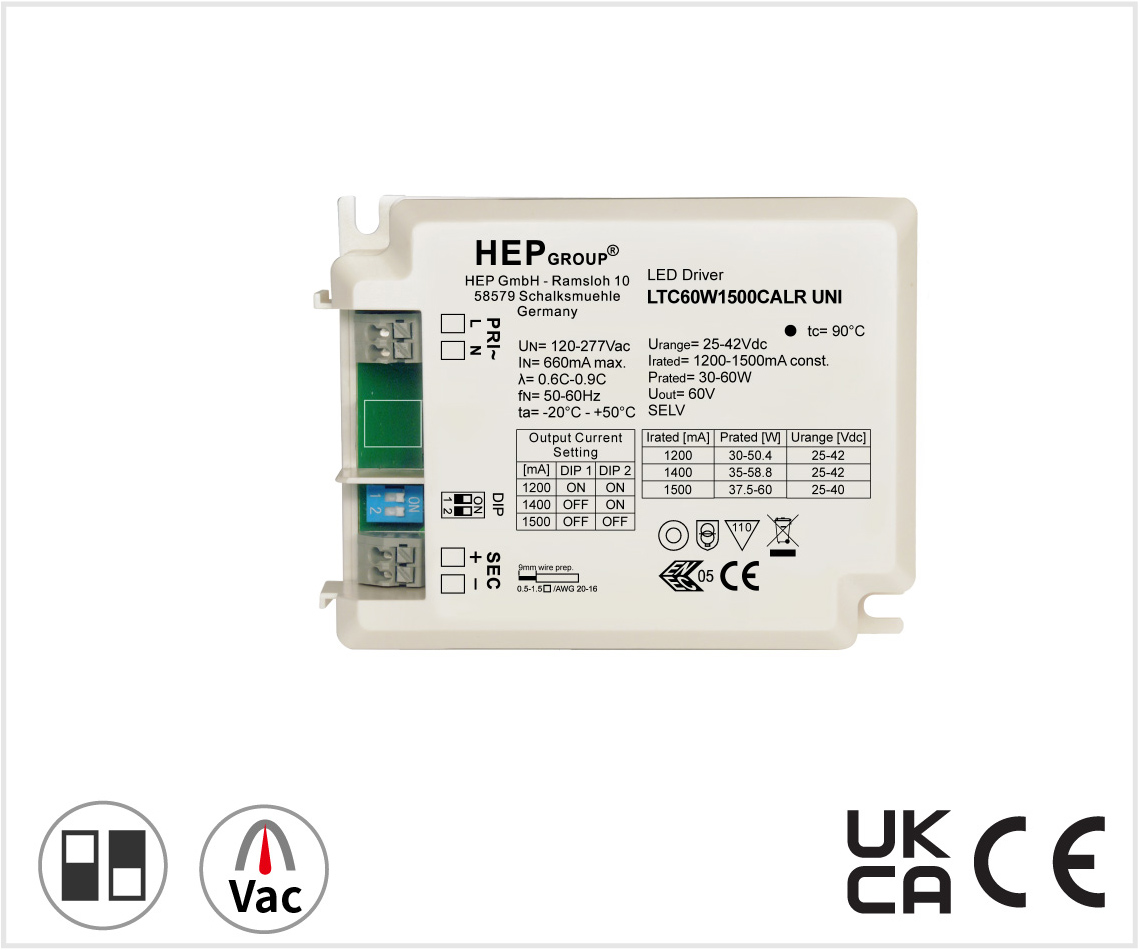

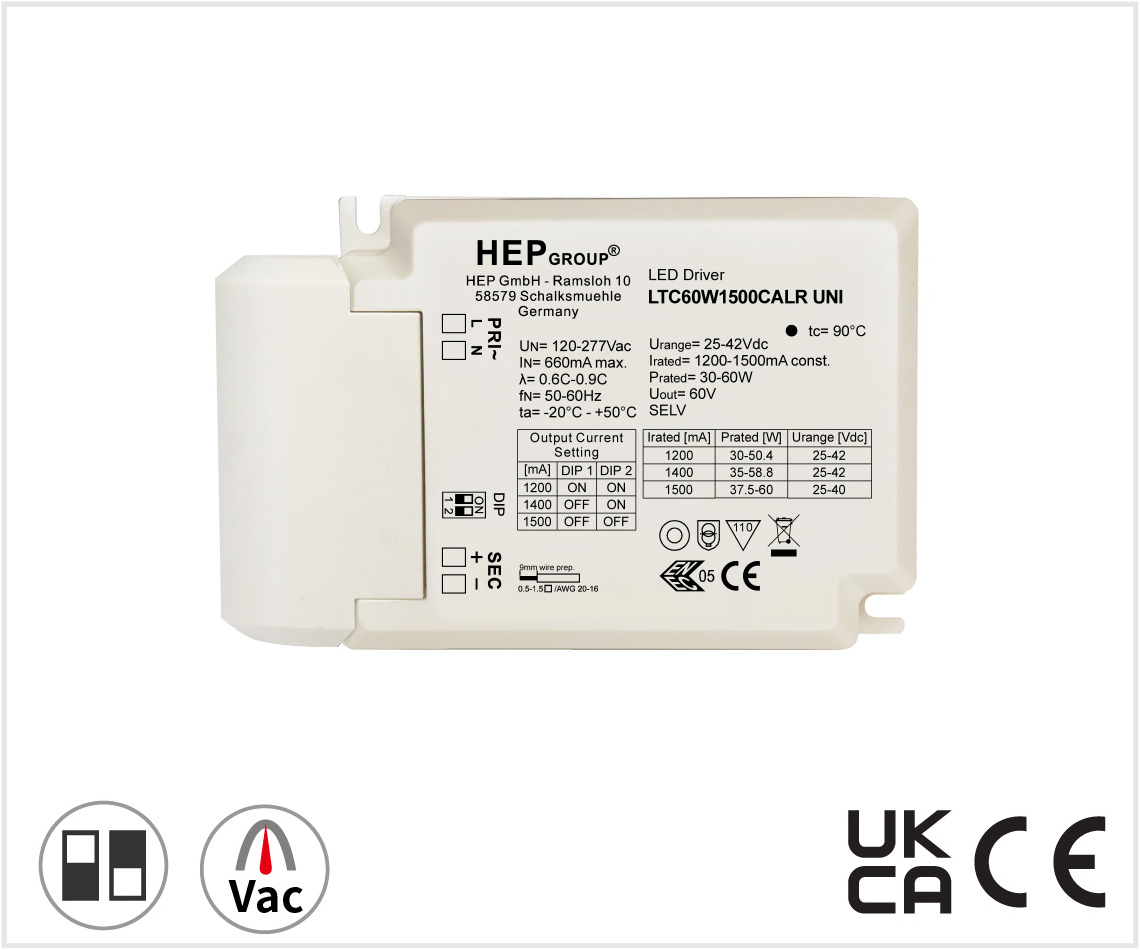

30 - 60 W,
Constant Current LED Driver 900 / 1000 / 1100 mA,
Output Current Adjustable via Dip Switch,
120 - 277 V wide voltage,
| Model | Vin | lout | Vout | Pout | Power Factor | Current Ripple | Dimension | Certification |
|---|---|---|---|---|---|---|---|---|
| LTC60W1500CALR UNI | 120 - 277 V | 1200 mA | 20-42 V | 30.0-50.4 W | 0.9 C | ±5 % | Built-in 103.5 x 79 x 30 mm Independent 123.0 x 79 x 30 mm |
ENEC/CE/ UKCA |
| 1400 mA | 20-42 V | 35.0-58.8 W | ||||||
| 1500 mA | 20-40 V | 37.5-60.0 W |
| Datasheet | LTC60W1500CALR UNI | |
|---|---|---|
| CB Certificate | NL-81432 | |
| ENEC Certificate | 88-124158 | |
| EU Declaration of conformity | CE_LTC | |
| GB Declaration of conformity | UKCA_LTC |
