6.3 - 20 W
Constant Current LED Driver
350 / 500 / 700 mA
Output Current Adjustable via Dip Switch,

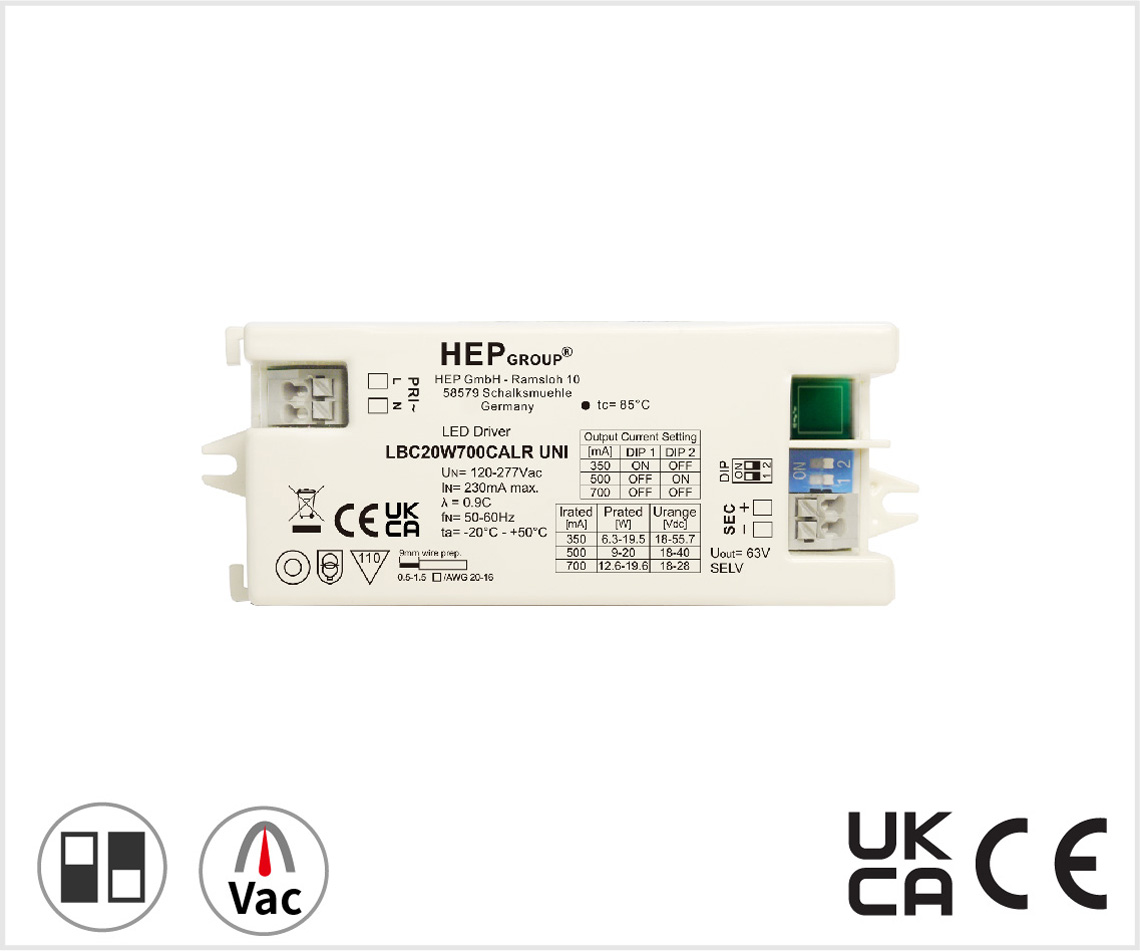

Built-in type with double or reinforced insulation,

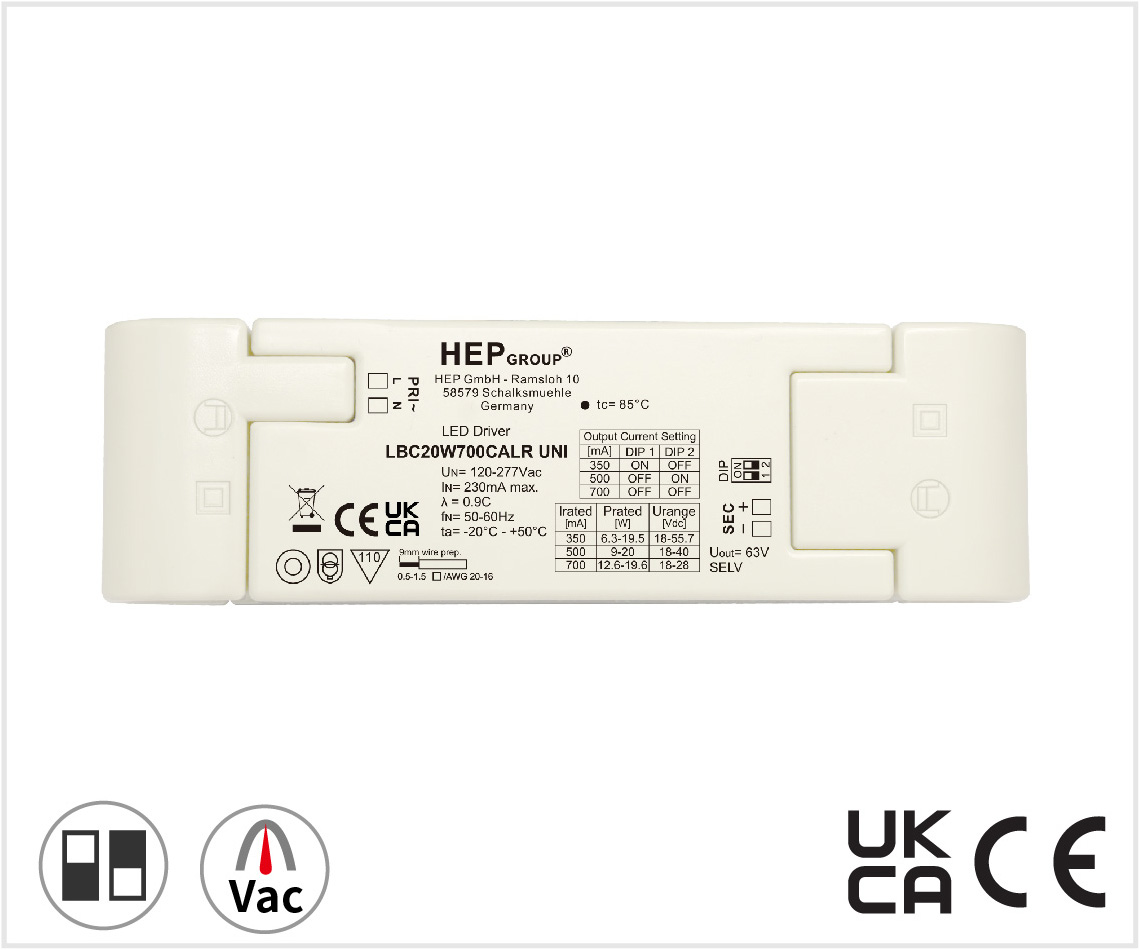

Optional with strain relief for independent installation,
with low ripple,
| Model | Vin | lout | Vout | Pout | Power Factor | Current Ripple | Dimension | Certification |
|---|---|---|---|---|---|---|---|---|
| LBC20W700CALR UNI | 120 - 277 V | 350 mA | 18 - 55.7 V | 6.3-19.5 W | 0.9 C | ±5 % | Built-in 112.8 x 43.8 x 30 Independent 141.8 x 43.8 x 30 (mm) |
CE/UKCA |
| 500 mA | 18 - 40 V | 9.0-20.0 W | ||||||
| 700 mA | 18 - 28 V | 12.6-19.6 W |
| Datasheet | LBC20W700CALR UNI | |
|---|---|---|
| EU Declaration of conformity | CE_LBC CALR Series | |
| GB Declaration of conformity | UKCA_LBC10W/20W |
